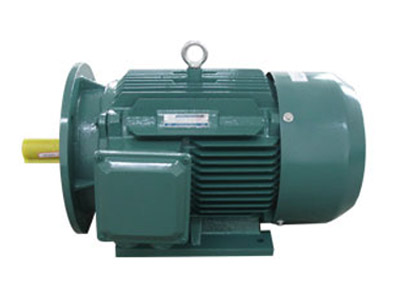

YE3D variable pole multi-speed motor is the main derivative of YE3 series motor. It uses the connection method of changing the winding to transform the number of poles and output power of the motor, so that it matches the load characteristics of the mechanical equipment. The series of motor noise, starting torque, vibration value and shape installation size are in line with IEC standards, with Y series motor small size, light weight, reliable operation, solid structure, beautiful appearance and so on. It can be used for speed control with manual control, contactors, control instruments, etc., saving a lot of power.

Application: Widely used in industries with speed step changes to meet the requirements of load properties, such as: machine tools, mining, metallurgy, textile, printing and dyeing, chemical and other industries dry agricultural machinery.
Function: Simplify variable speed systems by changing connections to obtain different outputs and speeds

Pole change modes: two-speed, three-speed and four-speed.

Standard Features ：
Output power: 0.55kW-200kW
Frame size: 80 - 355
Poles: 4/2、6/4、8/4、8/6、12/6、8/4/2
Degree of protection: IP54
Voltage: 380V or 400V
Frequency: 50Hz
Insulation Class: “F”class as standard
Temperature: Class B(80K)
Enclosure: TEFC
Basic type of Construction: B3, B5,B35, B14, B34
Cooling Method: IC411
