 Products >> MS series three-phase asynchronous motor with aluminum housing

Product overview：
MS series aluminum housing three-phase asynchronous motors, with latest design in entirety,are made of selected quality materials and conform to IEC standard.
MS motor have good performance,safety and reliable operation,nice appearance,and can be maintained very conveniently,while with low noise,little vibration and at the same time light and simple construction.these motors can be used for general drive.

Working condition：
Operating ambient temperature：-15~+40℃
Altitude：not more than 1000m（over 1000m need special order）
Rated voltage：380V
Rated frequency：50Hz
Duty type：S1（continuous），allows starting with full voltage
Insulation class：F（other class should order）
Protection class：IP55
Type of cooling：IC141
Power 3kW and below the Y connection over △ connection

Technical data：

Model
output
full load
75% load
50% load
T start/Tn
I st/In
max/T n
kW
HP
(A)
current
（r/min）
efficiency
Power
factor
efficiency
Power factor
efficiency
Power factor
380V 50Hz synchronous speed 3000r/min
MS-801-2
0.75
1
1.83
2835
77.4
0.83
72.0
0.83
70.2
0.80
2.2
6.1
2.3
MS-802-2
1.1
1.5
2.58
2835
79.6
0.84
75.1
0.83
73.0
0.80
2.2
7.0
2.3
MS-90S-2
1.5
2
3.43
2845
81.3
0.84
77.0
0.85
76.0
0.81
22
7.0
2.3
MS-90L-2
2.2
3
4.85
2845
83.2
0.85
80.0
0.85
78.0
0.84
2.2
7.0
2.3
MS-100L-2
3
4
6.31
2875
84.6
0.87
81.0
0.86
79.3
0.84
2.2
7.0
2.3
MS-112M-2
4
5.5
8.10
2895
85.8
0.88
83.5
0.87
81.0
0.84
2.2
7.5
2.3
MS-132S1-2
5.5
7.5
11.0
2905
87.0
0.88
84.6
0.89
83.0
0.84
2.2
7.5
2.3
MS-132S2-2
7.5
10
14.9
2905
88.1
0.88
85.9
0.87
83.7
0.84
2.2
7.5
2.3
MS-160M1-2
11
15
21.3
2935
89.4
0.89
86.8
0.89
84.1
0.84
2.2
7.5
2.3
MS-160M2-2
15
20
28.8
2935
90.3
0.89
88.0
0.89
86.4
0.85
2.2
7.5
2.3
MS-160L-2
18.5
25
34.7
2935
90.9
0.90
89.0
0.89
86.8
0.86
2.2
7.5
2.3
380V 50Hz synchronous speed 1500r/min
MS-801-4
0.55
0.75
1.57
1395
71.0
0.75
69.2
0.74
67.2
0.64
2.4
5.2
2.3
MS-802-4
0.75
1
2.03
1395
79.6
0.76
71.7
0.75
69.8
0.67
2.3
6.0
2.3
MS-90S-4
1.1
1.5
2.89
1405
81.4
0.77
73.1
0.75
70.8
0.67
2.3
6.0
2.3
MS-90L-4
1.5
2
3.70
1405
82.8
0.79
76.1
0.76
73.7
0.69
2.3
6.0
2.3
MS-100L1-4
2.2
3
5.16
1435
84.3
0.81
78.0
0.79
75.5
0.69
2.3
7.0
2.3
MS-100L2-4
3
4
6.78
1435
85.5
0.82
79.9
0.78
77.5
0.70
2.3
7.0
2.3
MS-112M-4
4
5.5
8.80
1445
86.6
0.82
81.9
0.79
79.6
0.70
2.3
7.0
2.3
MS-132S-4
5.5
7.5
11.7
1445
87.7
0.83
82.8
0.81
80.4
0.73
2.3
7.0
2.3
MS-132M-4
7.5
10
15.6
1445
88.7
0.84
84.8
0.82
82.6
0.74
2.3
7.0
2.3
MS-160M-4
11
15
22.3
1465
89.8
0.84
85.8
0.83
83.8
0.75
2.2
7.0
2.3
MS-160L-4
15
20
30.1
1465
90.6
0.85
90.0
0.83
88.5
0.75
2.2
7.5
2.3
380V 50Hz synchronous speed 1000r/min
MS-80M2-6
0.55
0.75
1.79
895
65.0
0.72
63.3
0.71
60.1
0.64
1.9
4.7
2.1
MS-90S-6
0.75
1
2.29
915
75.9
0.72
67.3
0.72
66.3
0.65
2.0
5.5
2.1
MS-90l-6
1.1
1.5
3.18
915
78.1
0.73
70.2
0.72
68.0
0.66
2.0
5.5
2.2
MS-100l-6
1.5
2
3.94
945
79.8
0.75
74.0
0.75
71.0
0.68
2.0
5.5
2.1
MS-112M-6
2.2
3
5.60
945
81.8
0.75
77.1
0.77
75.1
0.69
2.0
6.5
2.1
MS-132S-6
3
4
7.40
965
83.3
0.76
78.9
0.77
76.1
0.69
2.1
6.5
2.1
MS-132M1-6
4
5.5
9.80
965
84.6
0.76
80.0
0.77
77.5
0.70
2.1
6.5
2.1
MS-132M2-6
5.5
7.5
12.9
965
86.0
0.77
82.1
0.77
79.4
0.70
2.1
6.5
2.1
MS-160M-6
7.5
10
17.0
975
87.2
0.77
83.4
0.77
82.4
0.70
2.0
6.5
2.1
MS-160L-6
11
15
24.2
975
88.7
0.78
86.6
0.78
84.8
0.72
2.0
6.5
2.1
380V 50Hz synchronous speed 750r/min
MS-90S-8
0.55
0.75
2.17
670
63.0
0.61
55.9
0.58
50.9
0.59
1.8
4.0
2.0
MS-90L-8
0.75
1
2.39
680
71.0
0.67
60.9
0.65
59.7
0.56
1.8
4.0
2.0
MS-100L-8
1.1
1.5
3.32
680
73.0
0.69
72.0
0.61
59.8
0.57
1.8
5.0
2.0
MS-112M-8
1.5
2
4.40
690
75.0
0.69
74.2
0.64
59.8
0.58
1.8
5.0
2.0
MS-132S-8
2.2
3
6.00
705
78.0
0.71
77.2
0.61
60.1
0.58
1.8
6.0
2.0
MS-132M1-8
3
4
7.90
705
79.0
0.73
78.2
0.62
60.0
0.59
1.8
6.0
2.0
MS-132M2-8
4
5.5
10.3
720
81.0
0.73
80.2
0.63
61.0
0.58
1.9
6.0
2.0
MS-160M-8
5.5
7.5
13.6
720
83.0
0.74
81.2
0.61
62.0
0.59
2.0
6.0
2.0
MS-160L-8
7.5
10
17.8
720
85.5
0.75
84.5
0.63
65.9
0.59
2.0
6.0
2.0

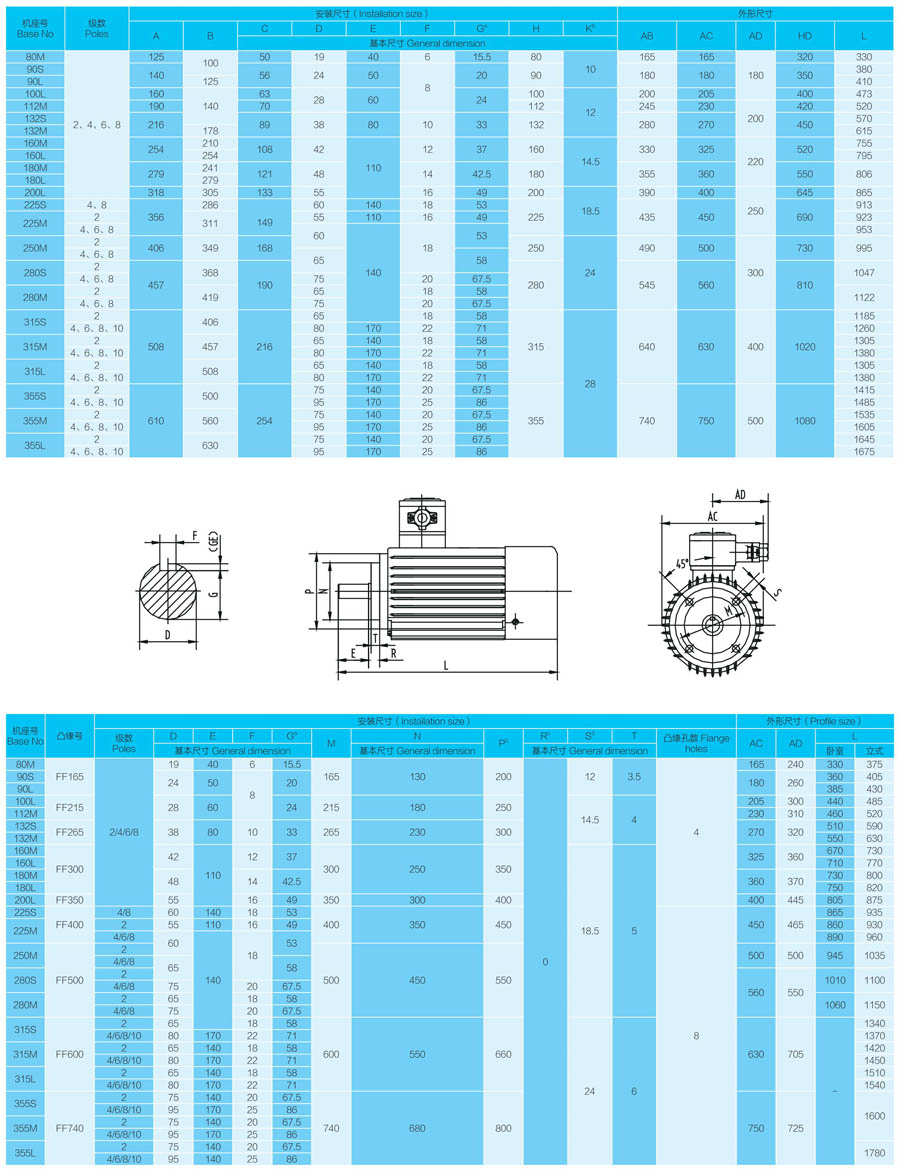

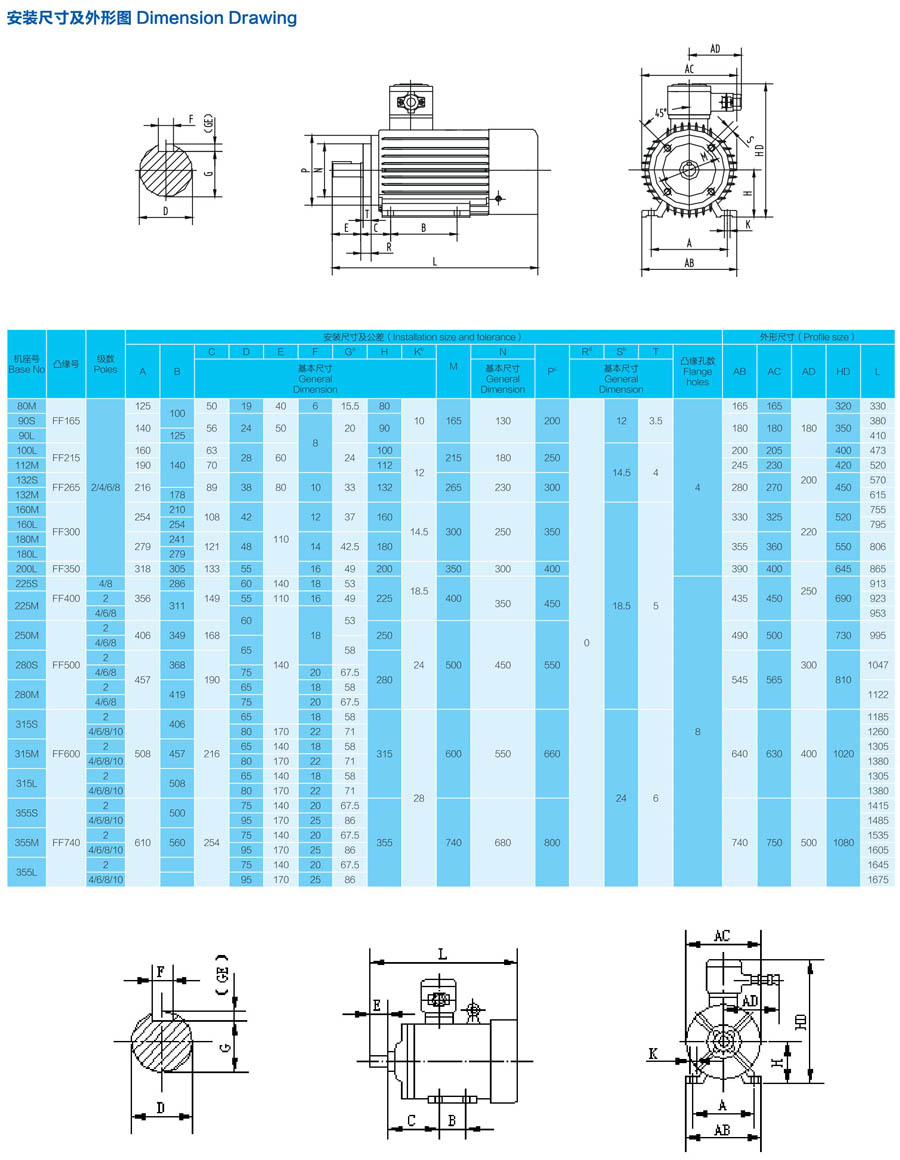

Overall & installtion dimension：

Frame
No
Installtion size
Installtion size IMB5
Overall dimension
A
B
C
D
E
F
G
H
K
M
N
P
S
T
AB
AC
AD
HD
L
80
124
100
50
19
40
6
15.5
80
10
165
130
200
12
3.5
155
160
113
193
284
90S
140
100
56
24
50
8
20
90
10
165
130
200
12
3.5
175
175
123
213
316
90L
140
125
56
24
50
8
20
90
10
165
130
200
12
3.5
175
175
123
213
341
100L
160
140
63
28
60
8
24
100
12
215
180
250
14.5
4
200
195
157
257
377
112M
190
140
70
28
60
8
24
112
12
215
180
250
14.5
4
226
220
163
275
392
132S
216
140
89
38
80
10
33
132
12
265
230
300
14.5
4
265
265
183
315
463
132M
216
178
89
38
80
10
33
132
12
265
230
300
14.5
4
265
265
183
315
501
160M
254
210
108
42
110
12
37
160
14.5
300
250
350
18.5
5
310
320
223
383
606
160L
254
254
108
42
110
12
37
160
14.5
300
250
350
18.5
5
310
320
223
383
650

Ordering instructions:
The user should giving the following parameters at the time of ordering goods:model of the motor,rated power rated voltage,rated frequency,rotating direction,anti-explosion class,protection degree,installation type,working form,operation condition and operation requirements of matching mechanical equipment etc.
The technical data and installation dimensions offered in this sample book can only be referred to and the,outline drawing offered by our company at the time of ordering goods is exact.
The data maybe change with the progress of technology.if there are any changes,we will not inform you separately.
